Based on the self-developed visual recognition algorithm, one-click photo snap on the cell phone to identify the remaining plates.Convenient for users to recycle and utilize the remaining irregular sheetsGive higher value to each piece of leftover material.

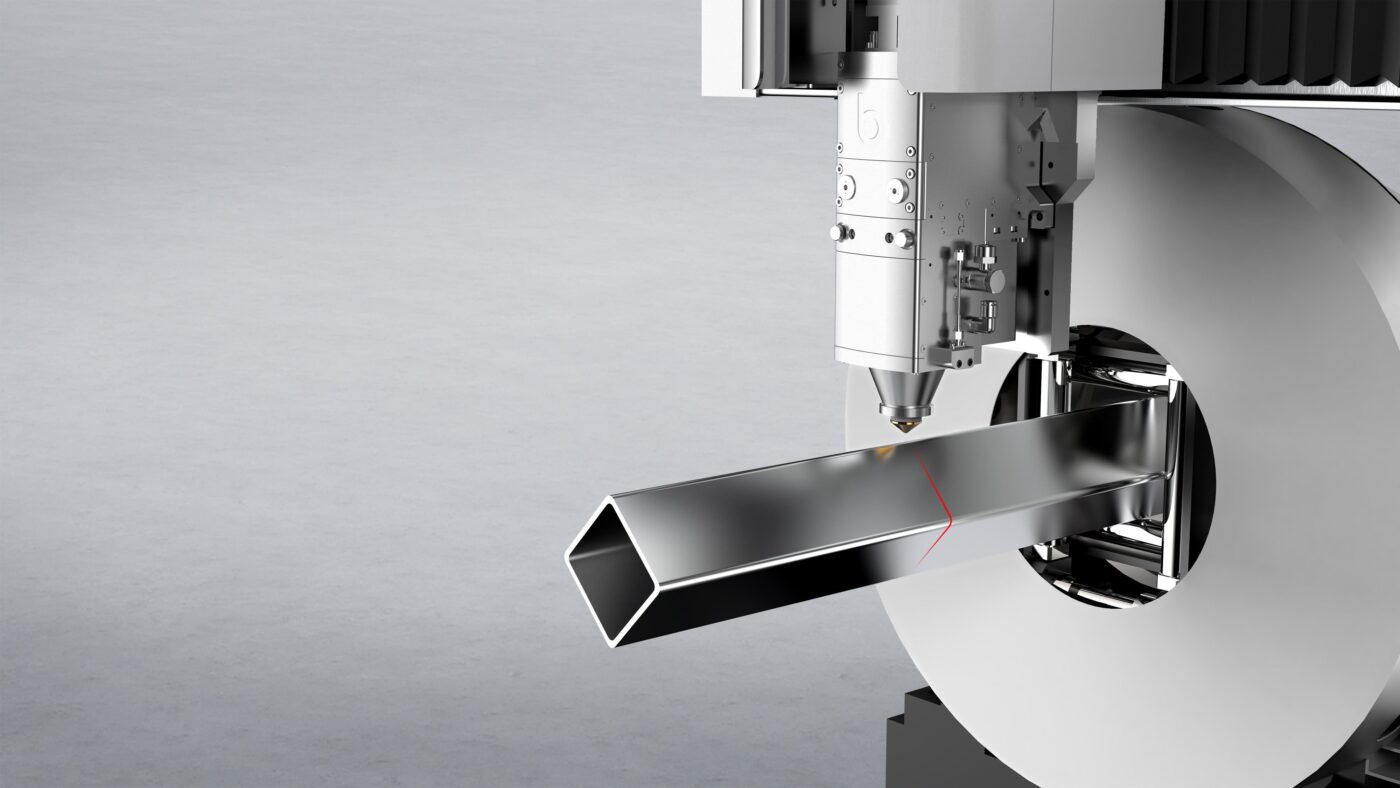

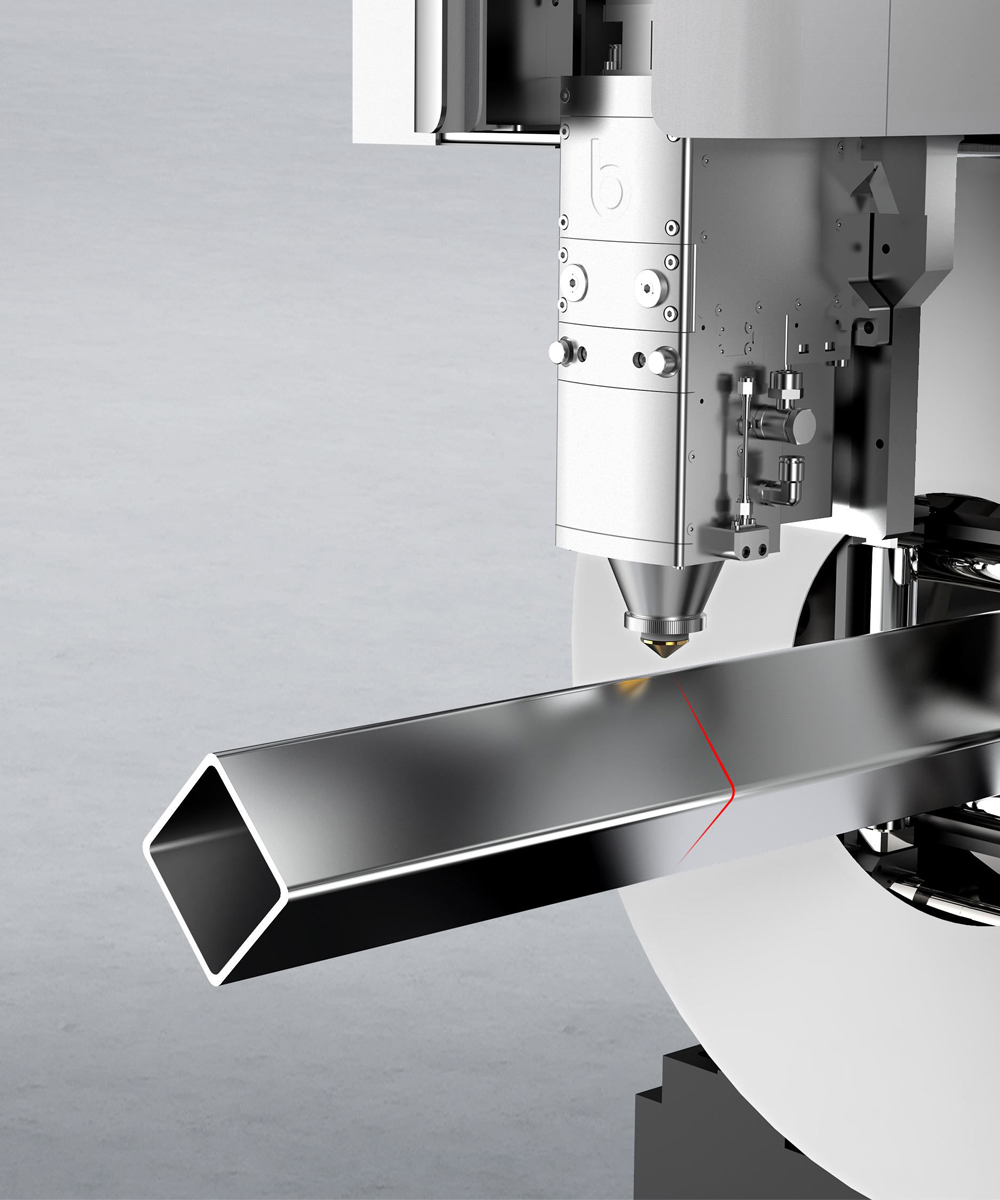

Adopting the direct cylinder push structure, the pneumatic chuck allows simple and efficient transmission. The fastest clamping response can be completed in only 2S.Easy removal and maintenance on site

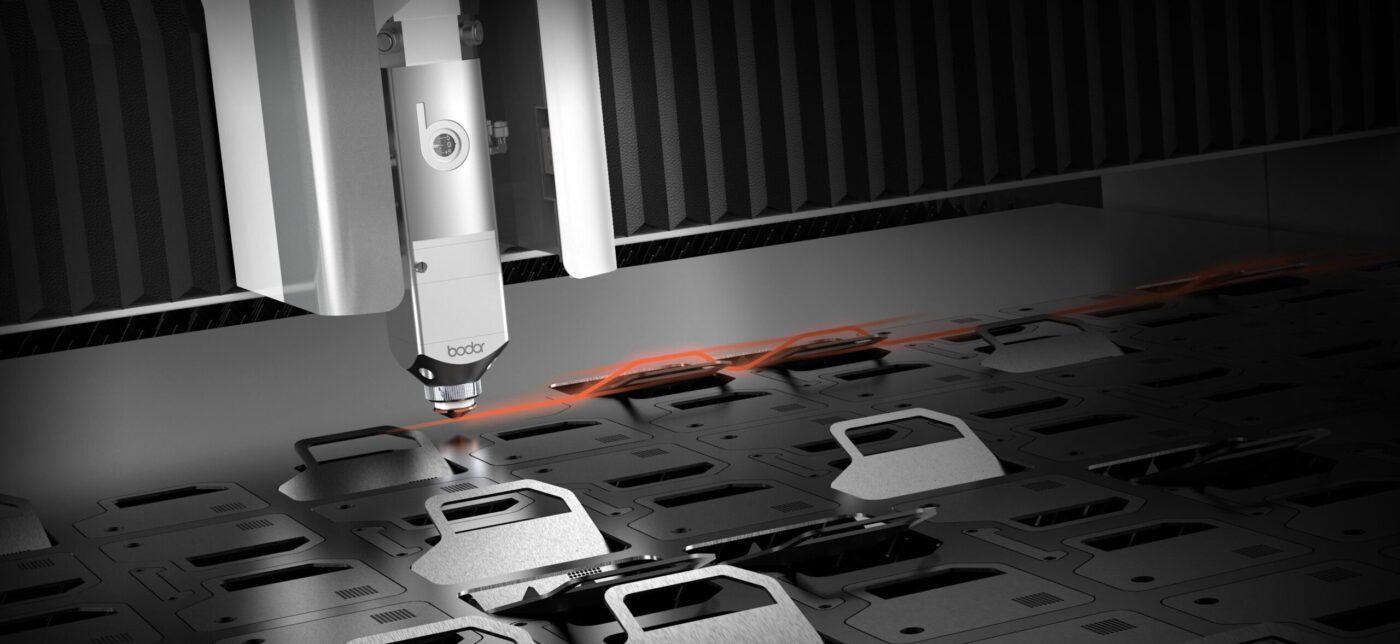

“Bodor lightning” drilling, which greatly shortens the drilling time and improves processing efficiency. Continuous drilling has high stability, and the hole reject rate is reduced from about 10% to about 3‰, which improves the integrity of the work.
High precision, small thermal variabes, stable follow-up, stable starting point, to ensure the best cutting section. Reduce drilling time, save gas, reduce energy consumption, reduce the risk of damage to lasers and cutting heads, and improve material utilization;

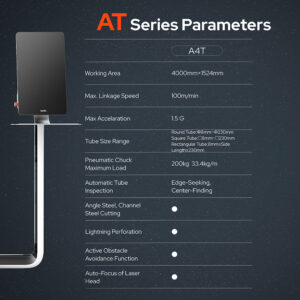

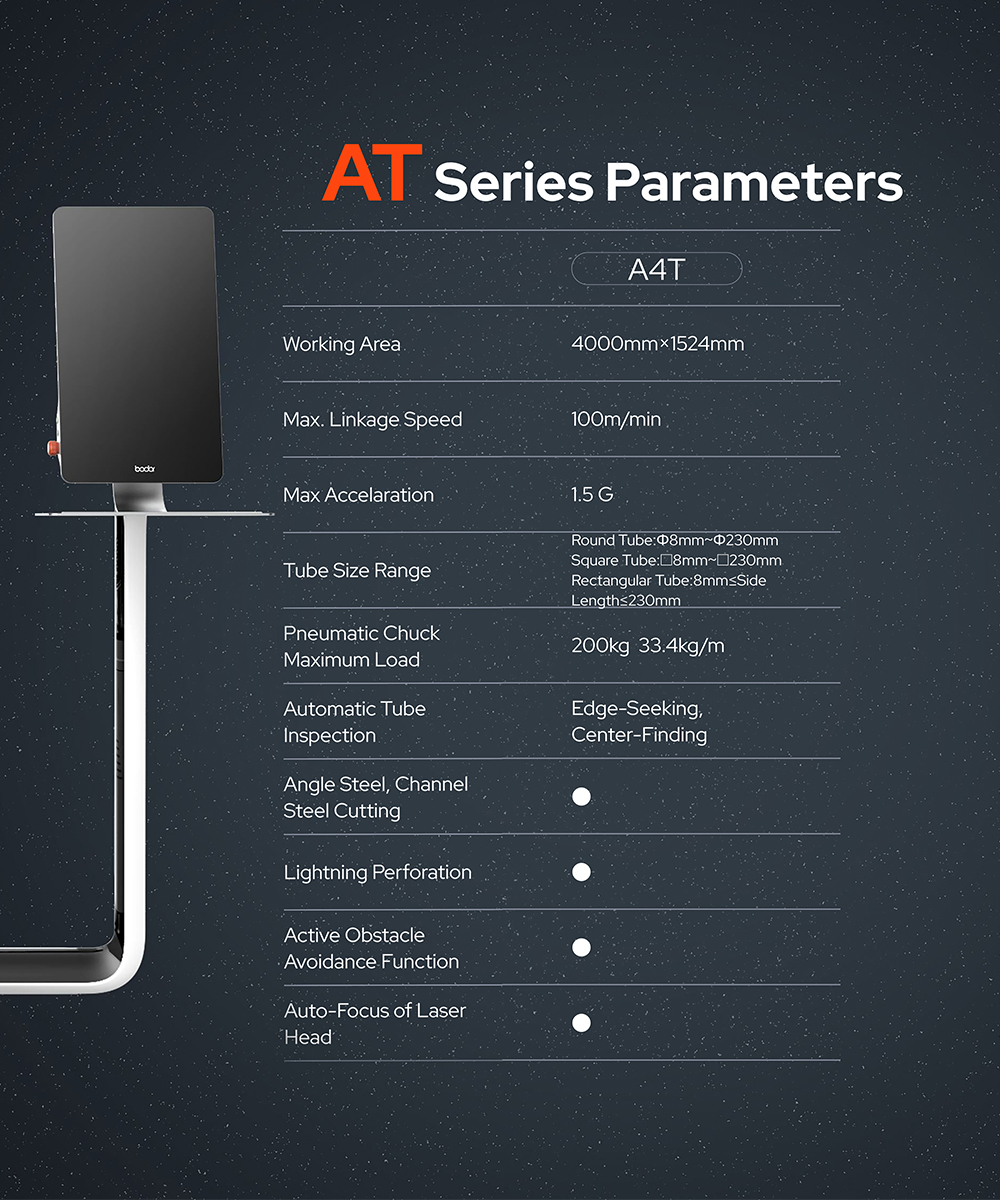

| Parameter | Specification |
|---|---|
| Model | A4T (6000W) |
| Working Area (Sheet) | 4000mm × 1524mm |
| Laser Output Power | 6000W |
| Max. Linkage Speed | 100m/min |
| Max. Acceleration | 1.5G |
| Tube Size Range | Round: Φ8mm~Φ230mm; Square: 18mm~230mm; Rectangular: Side ≥230mm |
| Pneumatic Chuck Max Load | 200kg (33.4kg/m) |
| Automatic Tube Inspection | Edge-Seeking, Center-Finding |
| Angle Steel/Channel Cutting | Yes |
| Lightning Perforation | Yes |
| Active Obstacle Avoidance | Yes |
| Auto-Focus Laser Head | Yes |
| Positioning Accuracy | ±0.05mm/m |
| Repositioning Accuracy | ±0.03mm |
| Machine Dimensions | Approx. 9000mm × 3000mm × 2200mm (varies by config) |
| Weight | Approx. 5500kg |
| Power Supply | 380V/50Hz |
Employs powerful algorithms to adapt to high-frequency vibrations in thin plates caused by air pressure, intelligently adjusting laser head sensitivity for consistently stable cutting and maintained quality/efficiency.
Allows taking a photo of remnants with a phone and uploading it; the system automatically identifies corners and enables one-click layout, turning waste into valuable resources.
Incorporates self-developed servo-following sensors and algorithms for 360° real-time obstacle detection in the operating path, planning avoidance routes to minimize collision risks.

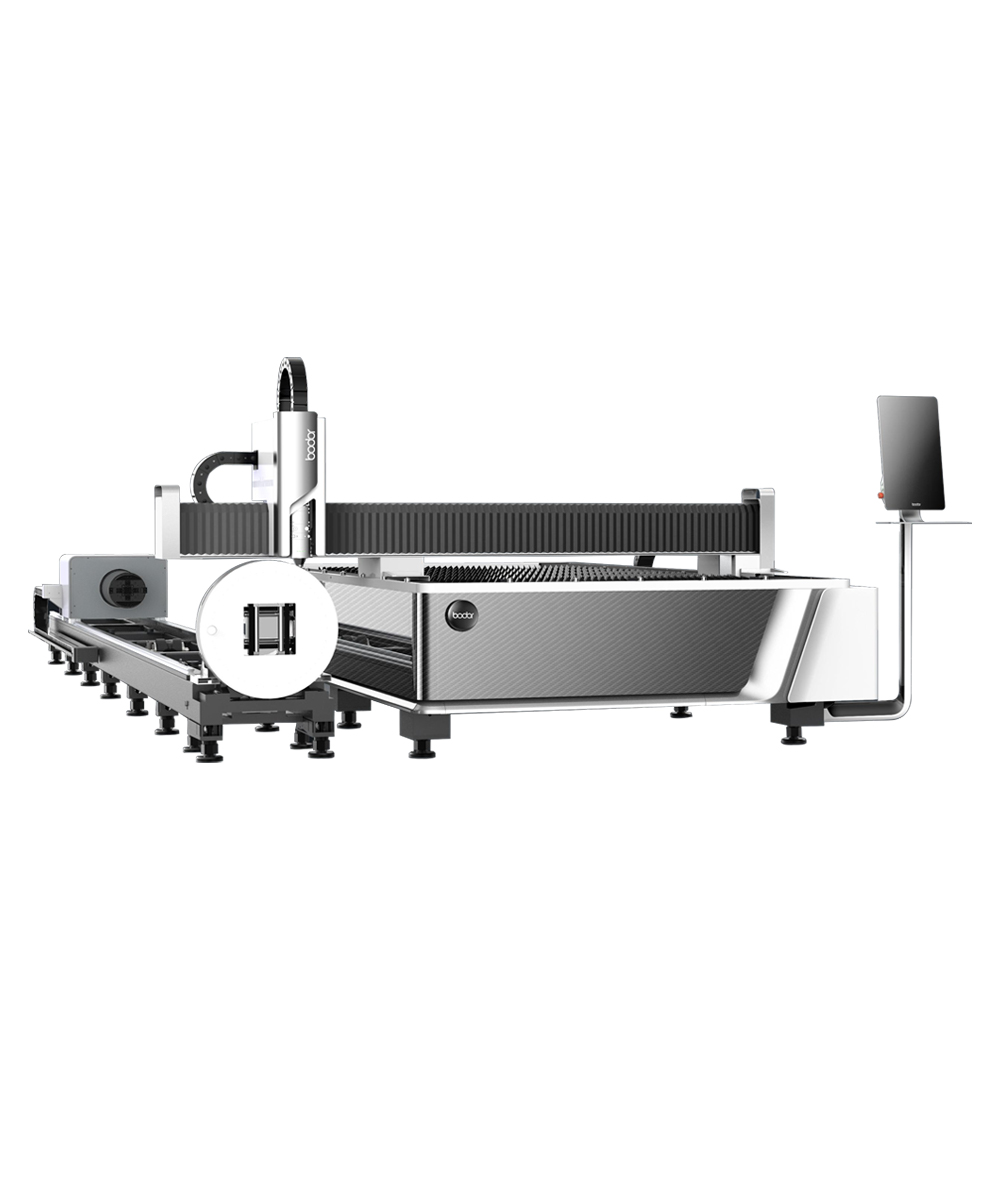

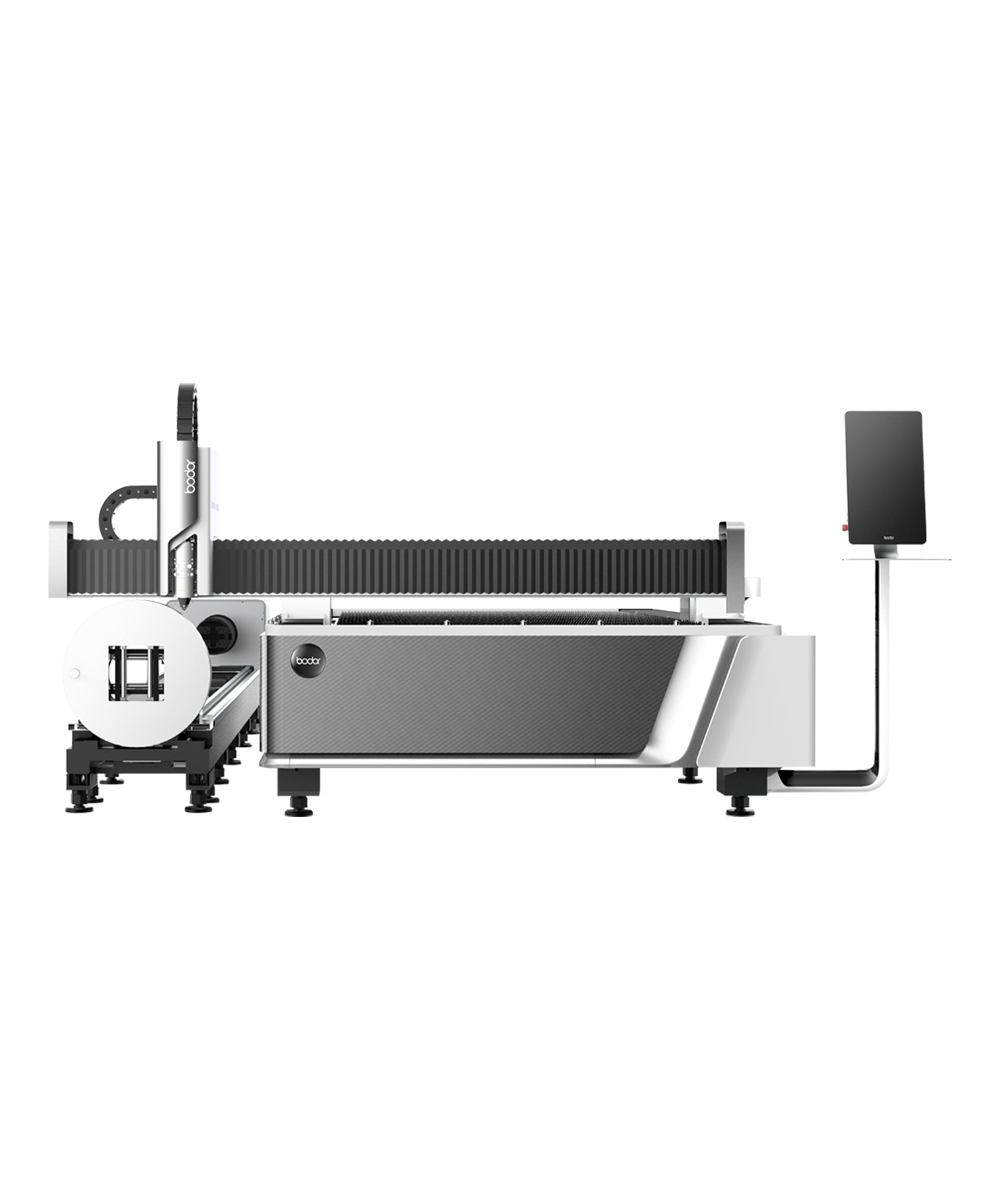

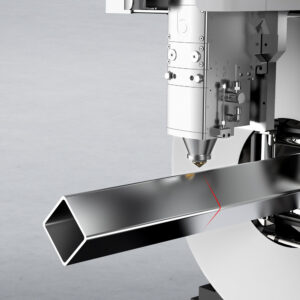

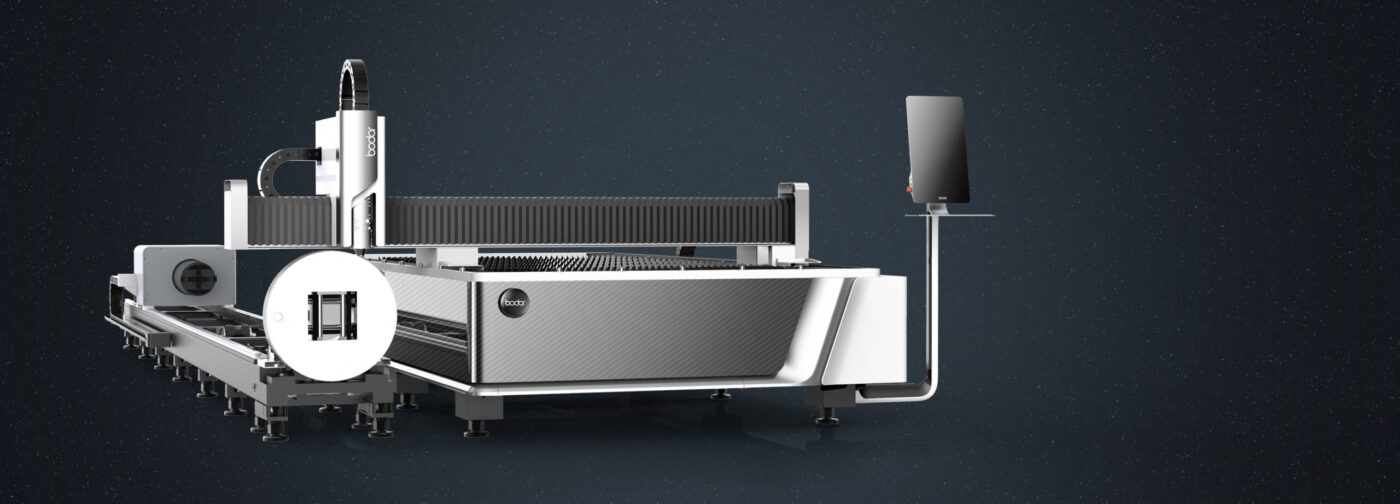

Provides instant access and immediate results for both sheet and tube cutting, with features like edge-seeking and center-finding for automatic tube inspection, angle/channel steel cutting, lightning perforation, active obstacle avoidance, and auto-focus laser head.
Working area of 3048mm×1524mm; max linkage speed 100m/min; tube size range includes round tubes Φ8mm~Φ230mm, square tubes 18mm~230mm, rectangular tubes with side lengths ≥230mm; pneumatic chuck max load 200kg (33.4kg/m).
Covers self-developed BodorThinker control system, BodorPower laser source, and BodorGenius laser head with integrated design for stability, reduced contamination, lower failure rates, extended lifespan, and decreased maintenance costs.
This table shows approximate cutting speeds (m/min) for common thicknesses using optimal assist gases. Data is based on Bodor’s performance charts for 3000W power.
| Material | Max Cutting Thickness (mm) |
|---|---|
| Carbon Steel (O₂) | 25 |
| Stainless Steel (N₂) | 16 |
| Aluminum (N₂) | 12 |
| Brass (N₂) | 8 |
| Thickness (mm) | Carbon Steel (O₂) | Stainless Steel (N₂) | Aluminum (N₂) | Brass (N₂) |
|---|---|---|---|---|
| 1 | 10-16 | 10-16 | 20-30 | 35-45 |
| 3 | 2.5-7.0 | 1.8-3.0 | 2.5-4.0 | 8.0-12.0 |
| 5 | 1.8-3.0 | 1.5-2.0 | 1.5-2.0 | 6.0-8.0 |
| 6 | – | 1.0-1.8 | – | 3.0-6.5 |
| 8 | 1.2-2.5 | 0.8-1.2 | 0.3-0.5 | 1.6-2.2 |
| 10 | 0.7-1.1 | 0.7-1.2 | – | 0.8-1.2 |
| 12 | – | 0.6-0.85 | – | – |
| 16 | 0.7-1.0 | 0.5-0.7 | – | – |
| 20 | 0.4-0.5 | – | – | – |
| 25 | 0.3-0.5 | – | – | – |
Oxygen (O₂) — Faster Cutting for Carbon Steel
2–3× faster cutting with extra heat generation
Ideal for thick carbon steel
Causes oxidation on edges (may need post-processing)
Low cost, higher finishing work
Nitrogen (N₂) — Premium Clean Cutting
Oxidation-free, clean and shiny edges
Best for stainless steel, aluminum, and brass
Slower cutting but superior finish quality
Higher cost, reduces rework and labor
Air — Cost-Effective General Cutting
Balanced speed and quality performance
Suitable for mild steel and non-critical applications
Slight oxidation possible
Lowest operating cost, reduced production expenses
Easy to clean slag: automatic seperation of metal residue and anti-burning plate, reducing maintenance cost.
Stability: longer service life and less deformation compared to anti-burnout cast iron and anti-burnout steel plates.

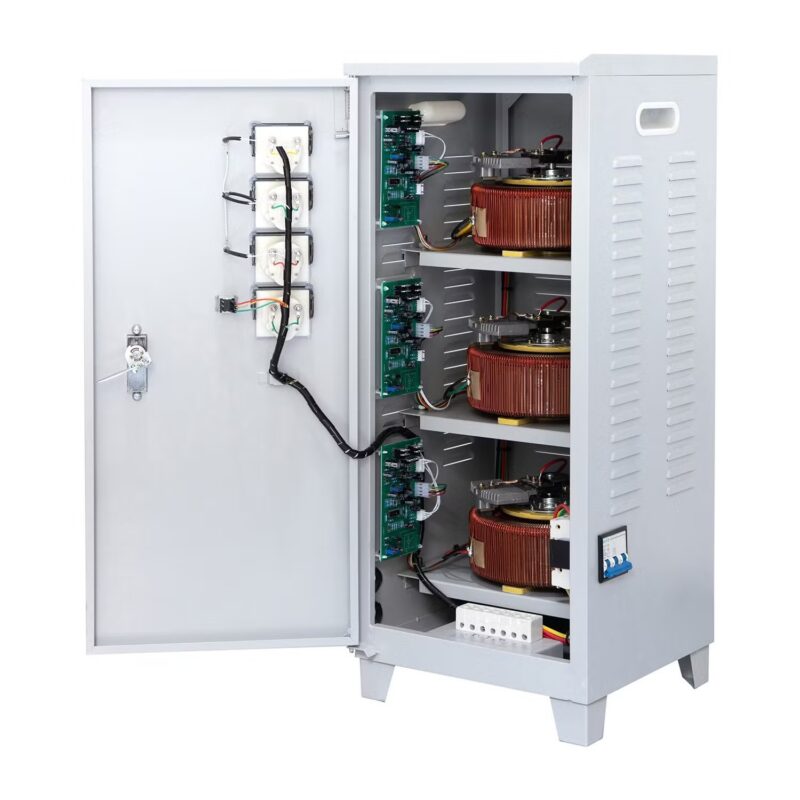

Three-Phase High-Precision Automatic AC Voltage Regulator
Type: Three-phase servo voltage stabilizer
Voltage: 380V / 415V
Capacity: usually 80kVA – 120kVA (depends on full machine load)
Accuracy: ±1% or ±2%
Frequency: 50Hz

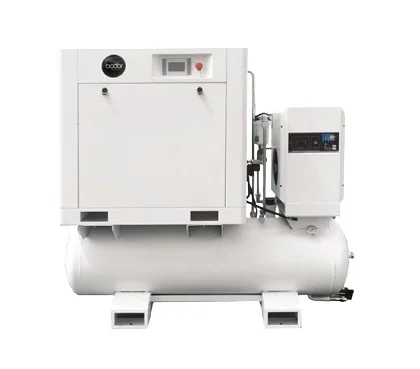

Compressor Details (for Air Cutting)
Type: Industrial Screw Air Compressor
Power: 15kW – 22kW (20HP – 30HP)
Air Pressure: 1.5–1.6 MPa (15–16 Bar)
Air Flow: 1.2 – 2.2 m³/min
Air Quality: Dry, oil-free, filtered air
We have the biggest genuine Bodor spare parts inventory in Sri Lanka, Bodor-trained engineers for exclusive on-site support, and dedicated online support for fast issue resolution and minimal downtime.
